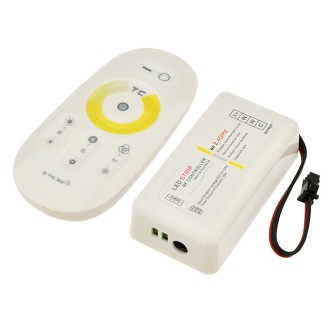

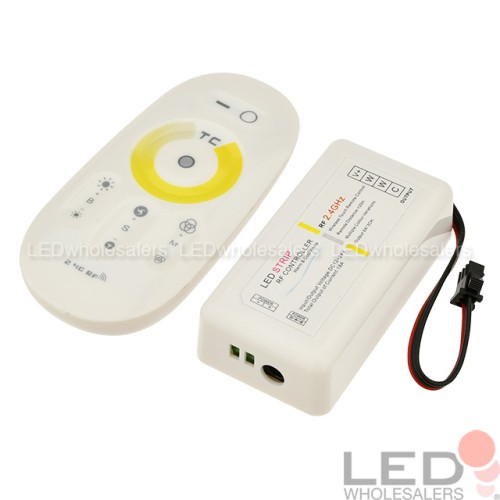

• Color temperature adjustable controller with 2.4GHz radio frequency (RF) wireless remote
• Control, adjust and dim CCT LEDs to the desired color temperature and brightness
• 12V-24V DC input, 2 channels, 12A max per channel (12A max total)
• Energy efficient; long distance signal transmission of >20m
• For use with color temperature adjustable LED strips/modules/sheets

Description

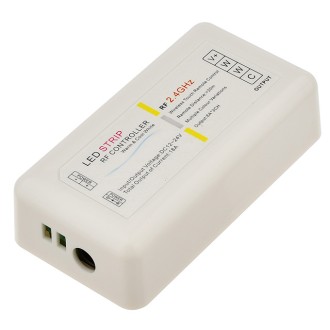

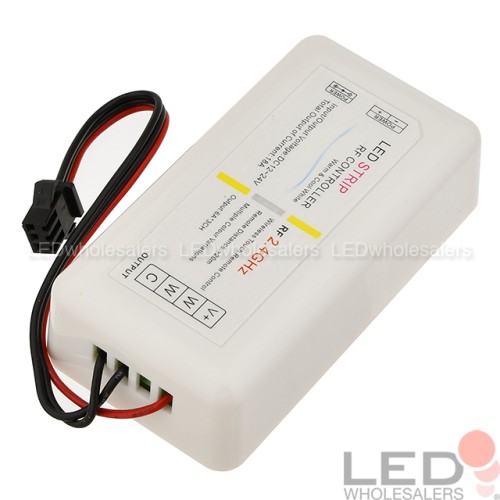

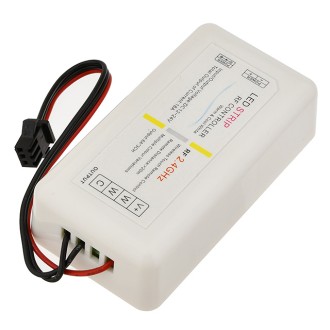

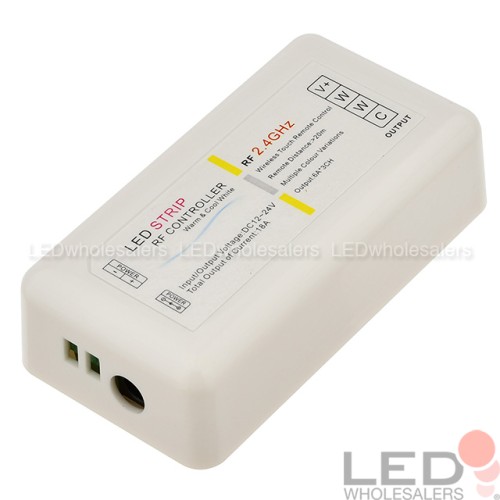

This easy-to-use RF controller allows the user to tune the color temperature and adjust the brightness of color temperature adjustable (tunable white) LED strips.  12V or 24V DC power may be connected to the controller via wires or 5mm DC jack.

Programming Controller

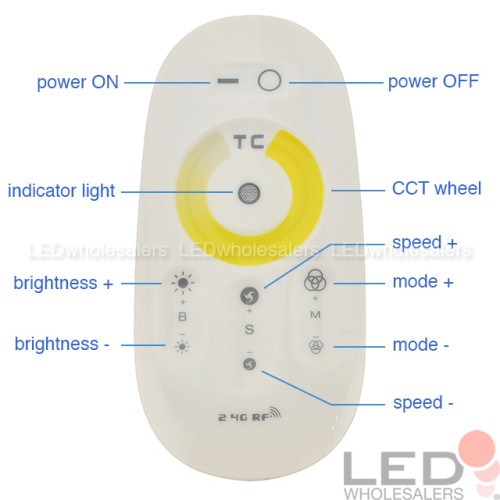

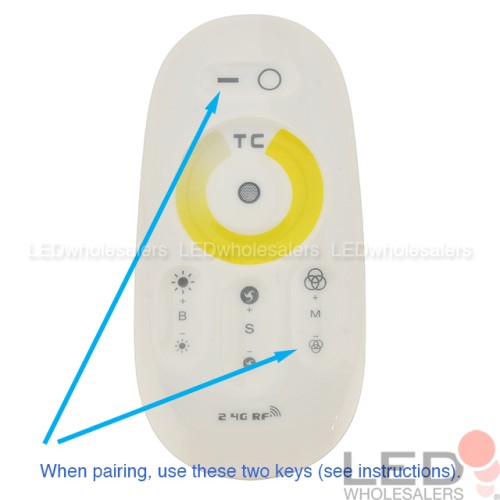

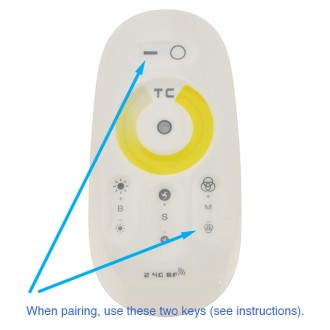

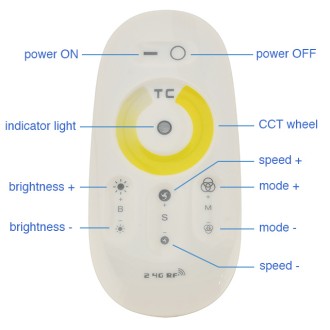

By default, the remote may be used to control multiple receivers of the same model.  If an application requires a receiver to be operated by only one remote, please pair them as outlined in the instructions below.  The upper left button (power ON button) and the lower right button (button below “M”) of the remote will be used.

To pair:

• Cut off power to controller and wait at least 10 seconds.
• Supply power to controller and, within 6 seconds, simultaneously press and hold the two buttons for 3 seconds.
• If successful, the connected LED light strip/modules would flash.  Repeat the above two steps if unsuccessful.

Note:

• A single remote may control multiple receivers.
• Each receiver may be controlled by multiple remotes.
