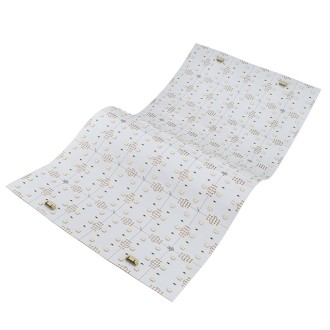

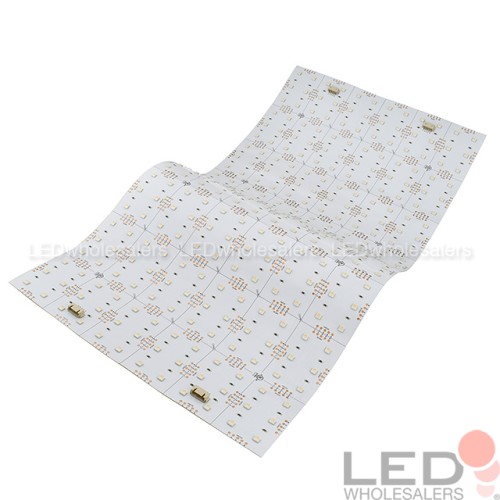

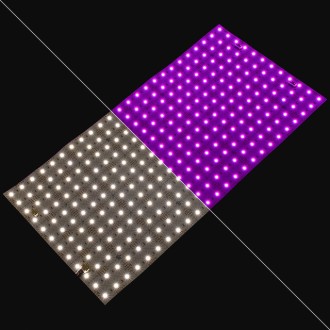

• 24" x 12" flexible sheet capable of displaying colorful as well as dedicated 3000 K warm-white light
• High density array with 288 LEDs per sheet – perfect for backlighting applications that require even, closely spaced LEDs
• Cuttable in 6-LED groups, approx. every 2"x3” rectangle, at designated cut lines; cut sections are linkable by directly soldering wires
• Adhesive back for easy installation on clean, dry, flat, smooth, non-porous surfaces
• Easily shapes around gentle slopes and curves

Description

Backlighting just got easier with these flexible LED light sheets.  Being flexible, they can conform to gentle slopes and curves.  Their high density LED array helps eliminate hot spots.  Installation is simple using their adhesive backing or via securing screws at designated locations.  In addition to emitting colorful RGB light, this sheet is also able to produce inviting, pleasant, warm-white light.

Note

• Must be used with compatible power supply and RGBW controller.
• Do NOT enlarge LED sheet by directly connecting additional sheets to it; additional sheets should be wired in parallel (controller and power supply must be of adequate capacity), or in series with an amplifier and a power supply in between.  When connecting sheets in series via jumpers, do NOT exceed 1.5 sheets (3 square feet) in total; additional sheets may be wired in parallel.
• Do NOT light up both RGB and (warm) white light at the same time.
• Avoid exposure to direct sunlight.
• Lay LED sheet flat (instead of rolled up) before powering on.
• Test all components before cutting or permanently mounting the sheet.
• It is strongly recommended to have ventilation to facilitate proper heat dissipation.

Specifications (LED strip)
