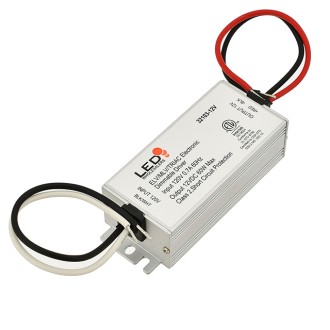

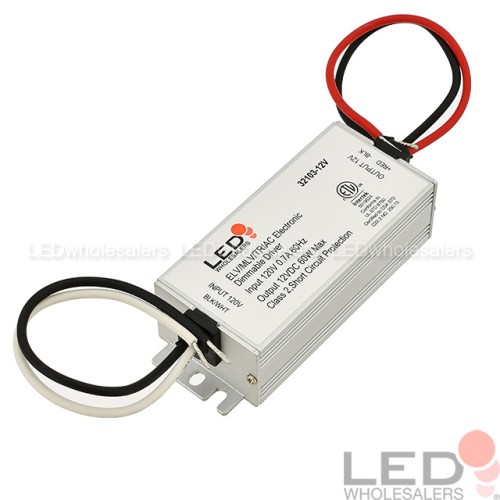

12V 60-Watt Constant Voltage ELV/MLV/TRIAC Dimmable Class 2 Electronic LED Driver with Integrated J-Box Option

Configuration

Qty - OR -

0 reviews Write a review

Features

Dimmable with most forward phase cut, MLV, ELV TRIAC dimmer switches
12V DC constant voltage output for smooth, flicker-free light; 60W max.

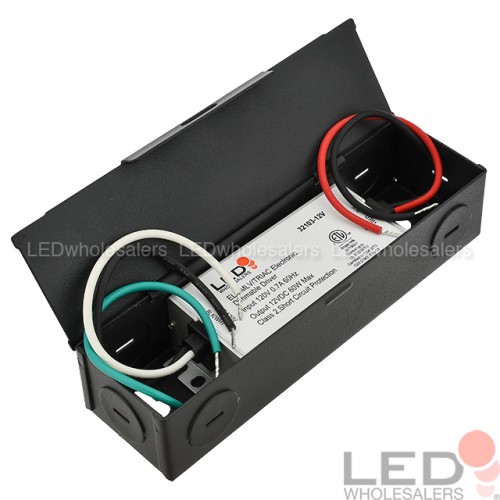

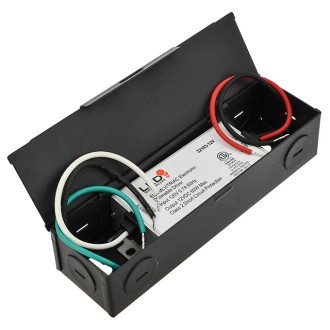

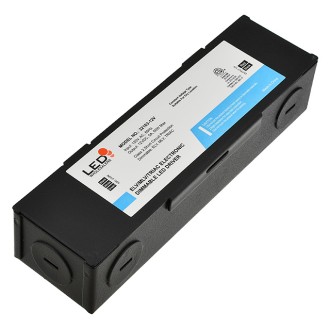

Optional metal housing with built-in wiring compartments for durability and easy installation
Multiple knockouts on optional enclosure for flexible wire routing
Suitable for use in dry and damp locations

Description

With its smooth dimming capability and integrated junction box, this 12V 60W LED driver is great for many LED lighting installations.

Note: 10% minimum load required.

Specifications

Output Voltage:	12 VDC
Output Current, Full Load:	5 A
Output Power (max.):	60 W
Input Voltage:	120 VAC, 60 Hz
Input Current (Max.):	0.7 A / 120 VAC
Efficiency:	85%
Working Temp.:	-20～+45 ℃
Working Humidity:	10～90% RH, non-condensing
Protection:	Short circuit, overload
Input Wires (White/Black/Green):	18 AWG
Output Wires (Red/Black):	18 AWG
Dimensions (LxWxH):	Enclosure: 6.3” x 1.9” x 1.4” Driver: 4.5” x 1.6” x 1.1”
Compliance:	ETL, RoHS
Warranty:	1 year

$52.99
