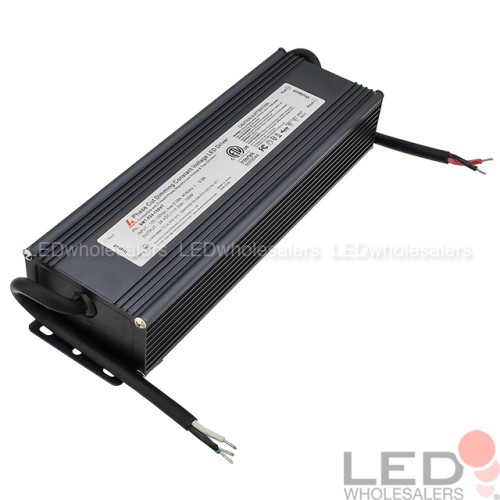

PS03 24V 150-Watt Constant Voltage Triac Dimmable PWM Output Electronic LED Driver
- Product Code: 3238-24V
- Availability: 325
-
$109.00
- 20 or more $103.55
Available Options
- OR -
====== LED Driver ======
Features
- Dimmable with most forward phase cut, MLV, and TRIAC dimmer switches
- 24V DC PWM constant voltage output for smooth, flicker-free light; 150W max.
- Over-temperature, overload, and short circuit protection
- Aluminum housing for durability and superior thermal management
- ETL-listed and IP67 rated; suitable for use in dry and wet locations
Description
This TRIAC dimmable electronic LED driver is ETL-listed. It may be dimmed with most forward phase cut, MLV, and TRIAC dimmer switches.
Specifications
| Output Voltage: | 24VDC |
| Output Current, Full Load: | 6.25A |
| Output Power (max.): | 150W |
| Input Voltage: | 100~130VAC, 50/60Hz |
| Input Current (Typ.): | 1.34A / 110VAC |
| Efficiency: | 85% |
| Working Temp.: | -40～+60℃ |
| Working Humidity: | 20～90% RH, non-condensing |
| Protection: | Over temp., short circuit, over load |
| Input Wires (White\Black/Green): | 18AWG |
| Output Wires (Red\Black): | 16AWG |
| Dimensions (LxWxH): | 10.1” x 3.1” x 1.8” |
| IP Rating: | IP67 |
| Compliance: | ETL, CE, RoHS |
| Warranty: | 1 year |
====== Enclosure ======
Features
- Durable metal construction for select PS03 150W LED drivers
- Perforated to allow air cooling of LED driver
- Mounting flanges allow for securing enclosure in place
- Wiring compartments for easy wiring
- Multiple knockouts for easy installation
Description
This metal enclosure is a great companion for select 150W LED drivers, allowing for a safe and clean installation.
Specifications
| Compatible LED Drivers: | 3237-12V, 3238-24V |
| Material: | Metal |
| Finish: | Black |
| Dimensions (including flanges): | 16.1”L x 3.4”W x 2.4”H |
