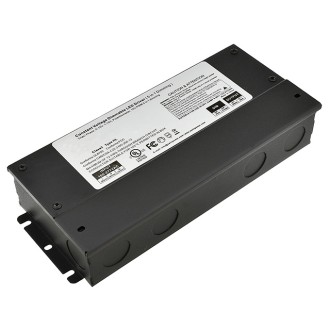

PS04 12V 60-Watt Constant Voltage Class 2 5-in-1 TRIAC & 0-10V Dimmable PWM Output Electronic LED Driver with Integrated J-Box

Qty - OR -

0 reviews Write a review

Features

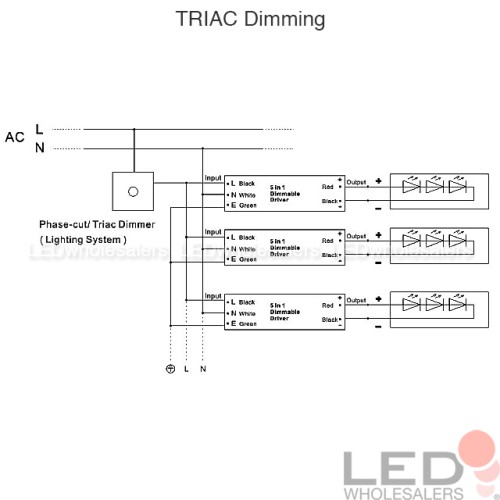

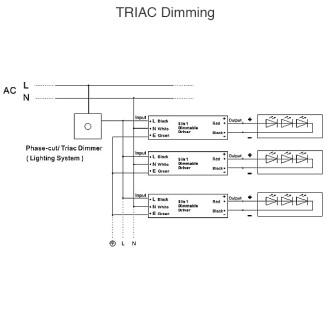

Dimmable with most MLV / forward phase / leading edge (TRIAC) and ELV / reverse phase / trailing edge dimmer switches

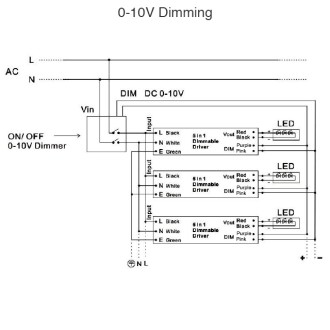

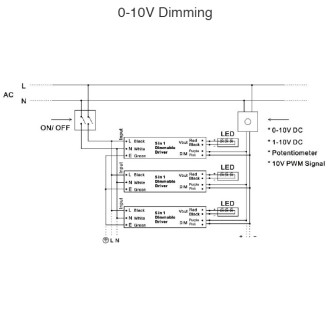

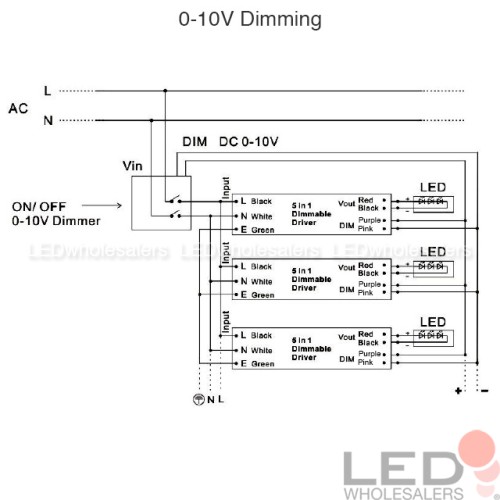

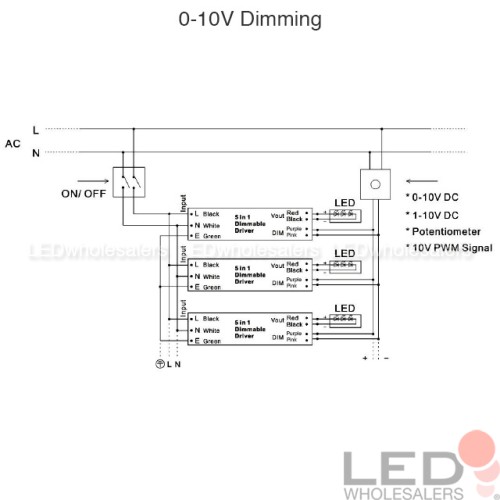

Supports 0-10V, 1-10V, potentiometer, and 0-10V PWM dimming control signals
12V DC PWM constant voltage output for smooth, flicker-free light; 60W max.

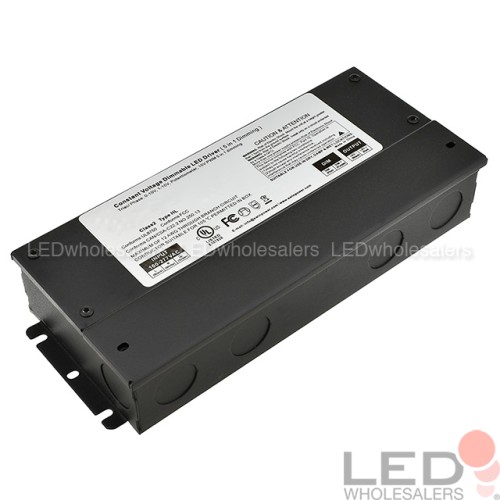

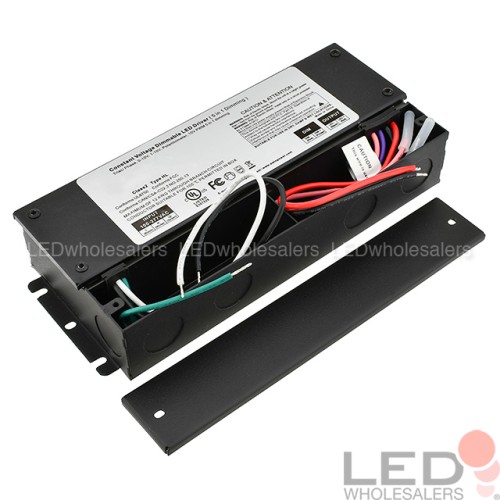

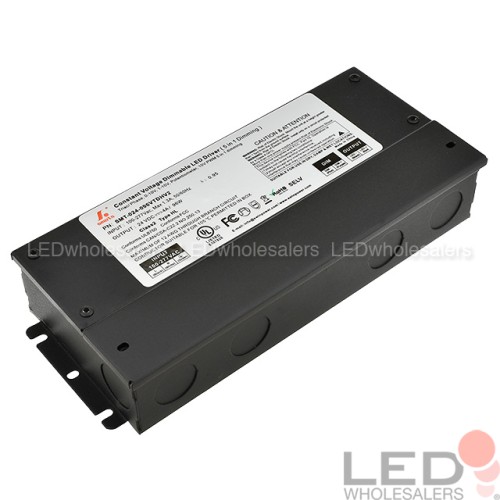

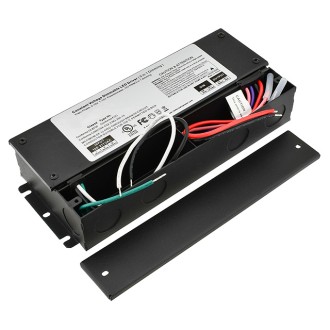

Metal housing with built-in wiring compartments for durability and easy installation
Type HL rated; suitable for use in dry, damp, and wet locations

Description

With its widely supported dimming methods and integrated J-box, this rugged 12V 60W LED driver is great for many LED lighting installations.

Note: 10% minimum load required.

Specifications

Output Voltage:	12 VDC
Output Current, Full Load:	5 A
Output Power (max.):	60 W
Input Voltage:	100~277 VAC, 50/60 Hz
Input Current (Max.):	0.62 A / 110 VAC
Efficiency:	87%
Working Temp.:	-30～+60 ℃
Working Humidity:	20～90% RH, non-condensing
Protection:	Over temp., short circuit, over load
Input Wires (White/Black/Green):	18 AWG
Output Wires (Red/Black):	16 AWG
Dimming Wires (Purple/Pink):	18 AWG
Dimensions (LxWxH):	7.87” x 3.94” x 1.67”
Compliance:	UL, RoHS
Warranty:	1 year

$85.99
