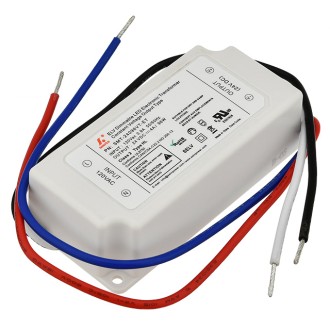

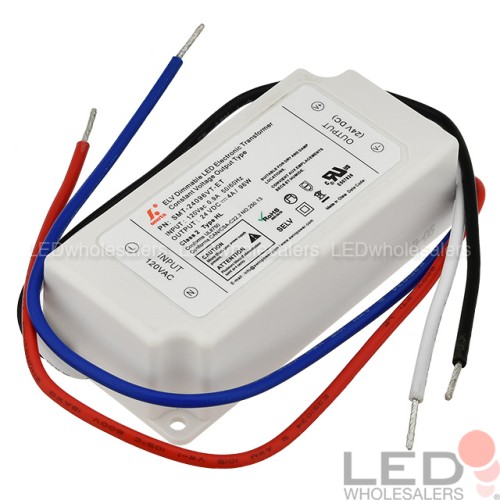

24V 90-Watt Class 2 Compact TRIAC Dimmable Electronic LED Driver
- Product Code: 3297-24VR2
- Availability: 54
- $66.99
-
$64.00 (4% OFF)
- OR -
Features
- Dimmable with most ELV, MLV, CL, forward or reverse phase dimmer switches
- 24V DC constant voltage output; 96W max.
- Compact size for installing inside a fixture or 4” junction box
- Overload, over-temperature, and short circuit protection
- UL-recognized; suitable for use in dry and damp locations
Description

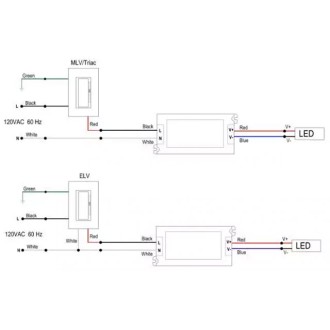

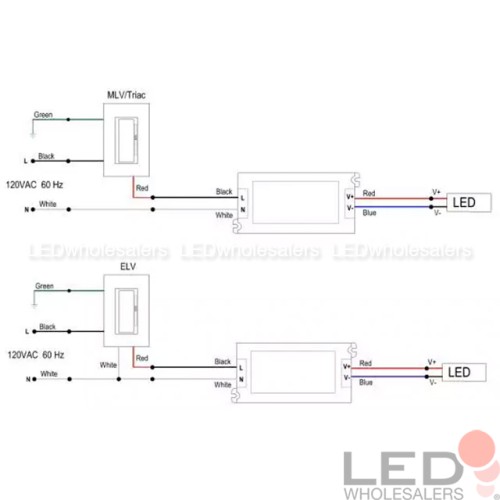

This electronic LED driver may be dimmed with most ELV, MLV, and CL TRIAC dimmer switches, and installed inside a fixture or junction box.
Note: 5% minimum load required.
Specifications
| Max. Load: | 96W |
| Input Voltage: | 120V AC 50/60Hz |
| Input Current at Full Load: | 0.9A |
| Output Voltage: | 24V DC |
| Output Current at Full Load: | 4A |
| Efficiency: | 88% |
| Primary Leads: | 18AWG |
| Secondary Leads: | 18AWG |

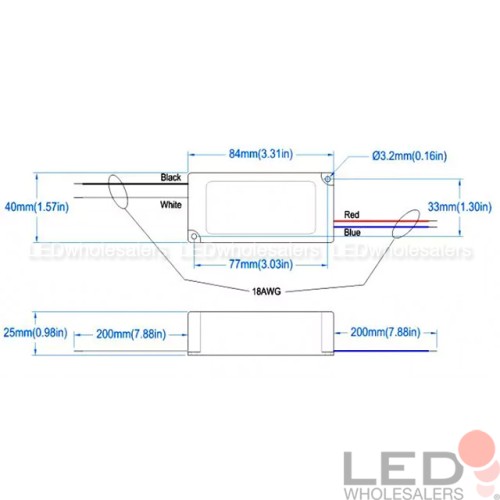

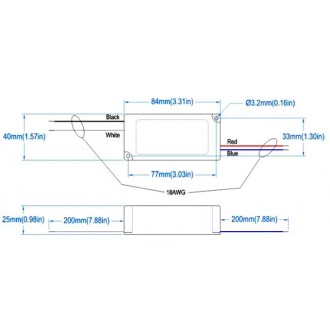

| Dimensions (LxWxH): | 3.31 x 1.30 x 0.98" |
| Compliance: | UL-recognized |
| Warranty: | 2-year |
