PS03 12V 300-Watt Constant Voltage Triac Dimmable PWM Output Electronic LED Driver

PS03 12V 300-Watt Constant Voltage Triac Dimmable PWM Output Electronic LED Driver
PS03 12V 300-Watt Constant Voltage Triac Dimmable PWM Output Electronic LED Driver
PS03 12V 300-Watt Constant Voltage Triac Dimmable PWM Output Electronic LED Driver
PS03 12V 300-Watt Constant Voltage Triac Dimmable PWM Output Electronic LED Driver
PS03 12V 300-Watt Constant Voltage Triac Dimmable PWM Output Electronic LED Driver
  • Product Code: 3239-12V
  • Availability: 453

  • $185.00

Available Options

  - OR -
0 reviews Write a review

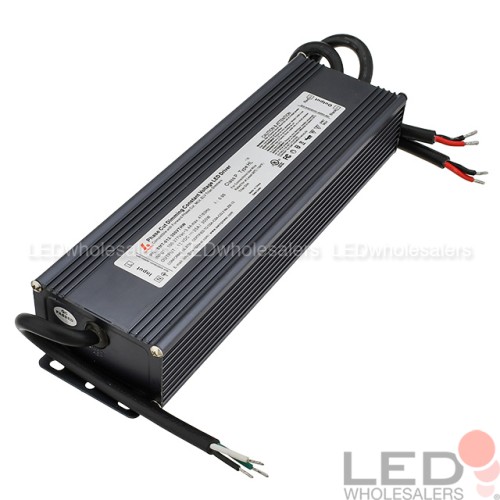

======   LED Driver   ======

Features
  • Dimmable with most forward phase cut, MLV, ELV TRIAC dimmer switches
  • 12V DC PWM constant voltage output for smooth, flicker-free light; 300W max.
  • Over-temperature, overload, over-current, and short circuit protection
  • Aluminum housing for durability and superior thermal management
  • UL-listed and IP67 rated; suitable for use in dry and wet locations

Description

This TRIAC dimmable electronic LED driver is UL-listed.  It may be dimmed with most forward phase cut, MLV, ELV TRIAC dimmer switches.

Note: The two sets of output leads are for wiring convenience only.  The maximum TOTAL rated power is 300W.

Specifications

Output Voltage: 12VDC
Output Current, Full Load: 25A
Output Power (max.): 300W
Input Voltage: 100~277VAC, 50/60Hz
Input Current (Typ.): 3.4A / 110VAC
Power Factor: 0.98 @ 120VAC
Efficiency: 83%
Working Temp.: -40～+60℃
Working Humidity: 20～90% RH, non-condensing
Protection: Short circuit, over current,
over temperature, overload
Input Wires (White\Black/Green): 18AWG
Output Wires (Red\Black): 14AWG
Dimensions (LxWxH): 10.9” x 3.1” x 1.8”
IP Rating: IP67
Compliance: UL, CE, RoHS
Warranty: 1 year

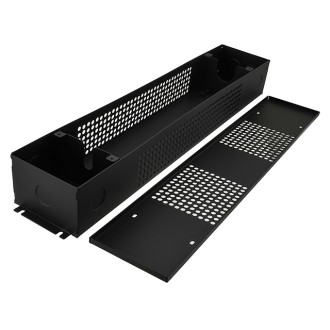

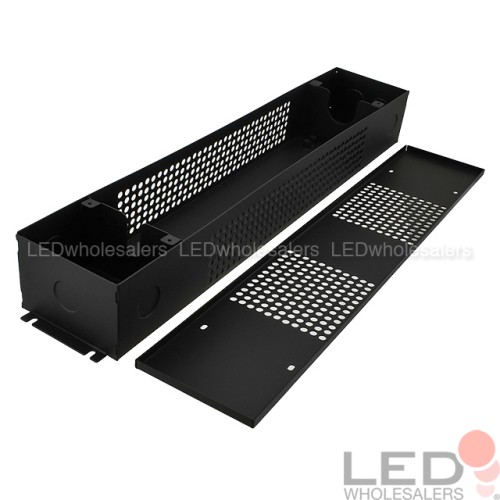

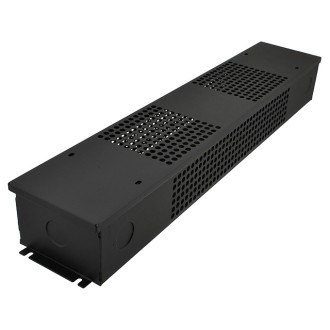

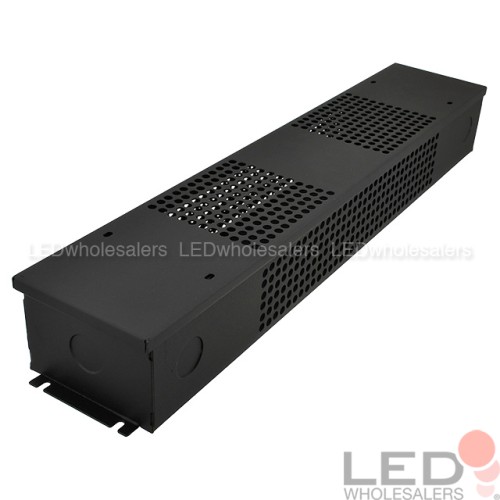

======   Enclosure   ======

Features
  • Durable metal construction for select PS03 300W LED drivers
  • Perforated to allow air cooling of LED driver
  • Mounting flanges allow for securing enclosure in place
  • Wiring compartments for easy wiring
  • Multiple knockouts for easy installation

Description

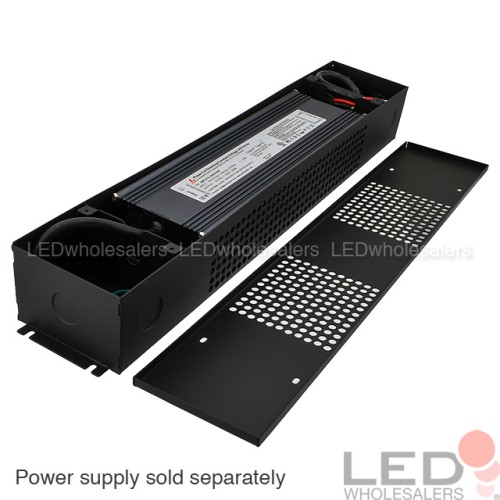

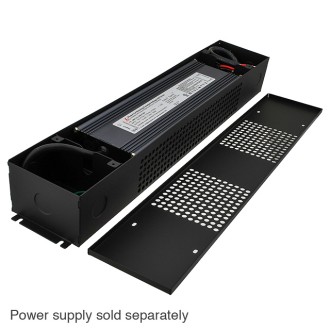

This metal enclosure is a great companion for select 300W LED drivers, allowing for a safe and clean installation.

Specifications

Compatible LED Drivers: 3239-12V, 3240-24V
Material: Metal
Finish: Black
Dimensions (including flanges): 17.9”L x 3.4”W x 2.4”H
