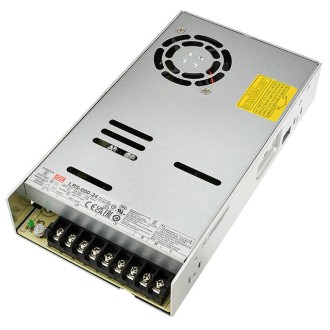

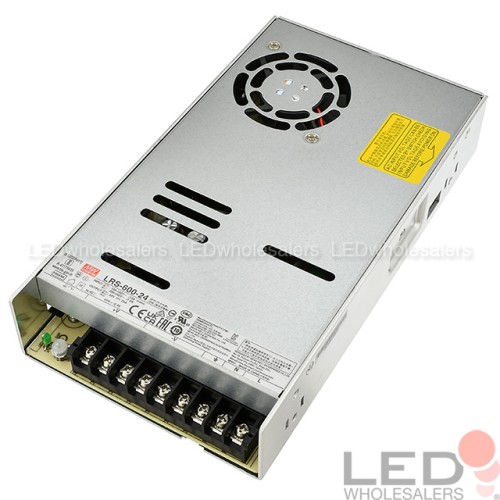

24V 600W Constant Voltage Low Profile Switching Power Supply with Built-In Fan
- Product Code: 3277-24V
- Availability: 6
-
$123.99
- 12 or more $117.79
- 45 or more $114.07
- OR -
Features
- 600W of maximum power at 24VDC constant output voltage
- AC input voltage range selectable by switch
- Short circuit / Overload / Over voltage / Over temperature protection
- Low profile design with forced air cooling via built-in fan (automatically turns on when required)
- Multiple output terminals for easy wiring
- Powered by MEAN WELL
Description
This power supply is great for powering your 24VDC LED lights and other electronic devices, up to 600 watts. Perfect for in box installation. UL-recognized, well built, and stable.
Note
- Indoor use only.
- Power cord NOT included.

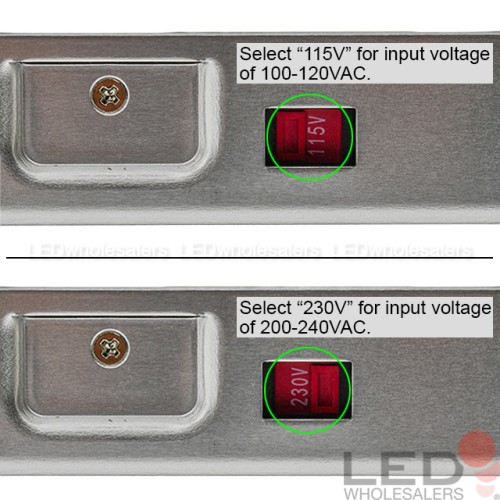

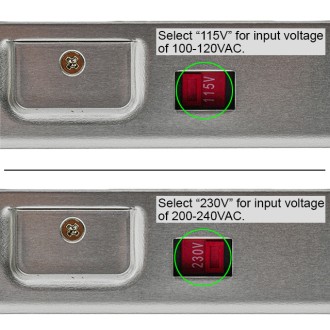

- Be sure to set selector switch (red color) to the correct input voltage on the side of unit.
Specifications
| Input Voltage: | 100-120VAC or 200-240VAC, 50/60Hz (selected via switch) |
| Output Voltage: | 24 VDC |
| Output Wattage: | 600 W |
| Output Current (max): | 25 A |
| Working Temp: | -20 ~ +65 ℃ |
| Working Humidity: | 20 ~ 90% RH non-condensing |

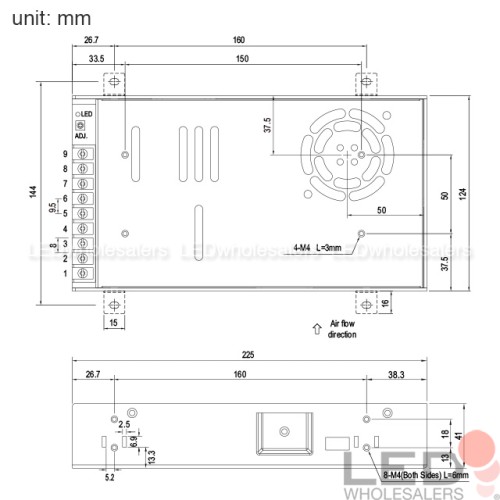

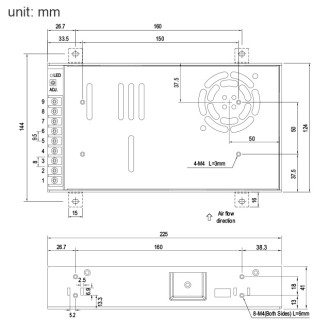

| Dimensions (LxWxH): | 8.9" x 4.9" x 1.6" |
| Compliance: | UL-recognized |
| Warranty: | 1 year |
