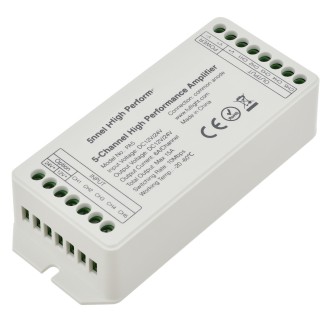

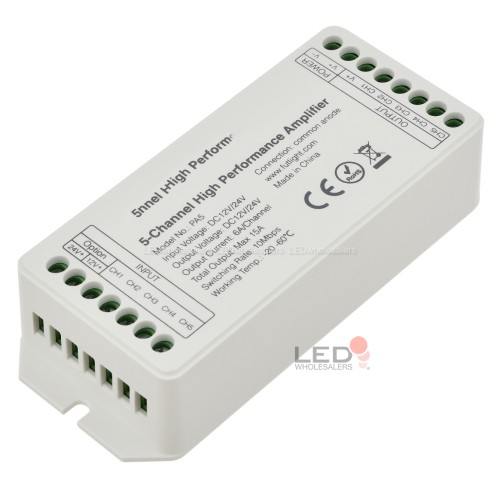

5-Channel High-Performance Data Signal Repeater Amplifier for RGB/RGBW/RGB-CCT LED Ribbon Strip Lights and Modules 12-24V
- Product Code: 3305-5CH
- Availability: 57
-
$22.99
- 20 or more $21.84
- 60 or more $21.15
- OR -
Features
- Expands load capacity for RGB, RGBW, and RGB+CCT LED lighting setups
- Enables connecting of LED strips/modules in series
- Enhances performance of LED strips/modules that are farther away from controller
- Supports 12-24VDC devices, with max. output current of 6A per channel (15A total)
- High-performance, energy-efficient, and reliable
Description

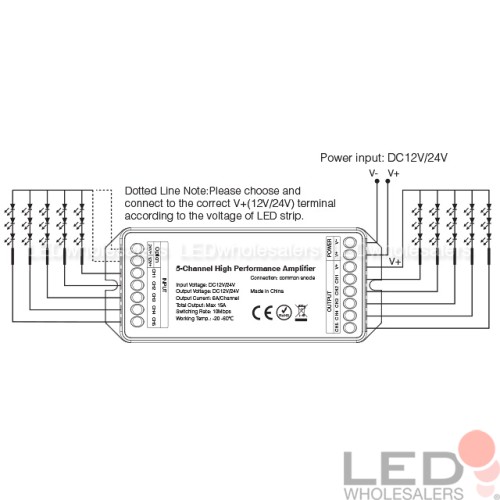

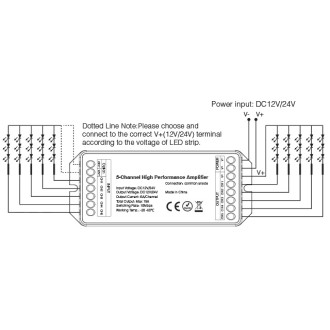

This data signal repeater/amplifier (booster) is needed if the load of the RGB/RGBW/RGB+CCT LED lighting devices exceeds the rated output of the controller or decoder. It allows one to run longer lengths connected end-to-end. Amplifier takes in the signal from the end of an RGB/RGBW strip/module (or long extension wires from controller) and boosts the signal to power additional RGB/RGBW/RGB+CCT LED strips/modules. Each amplifier requires DC power source (not included).
Specifications
| Number of Channels: | 5 |
| Input Voltage: | 12-24V DC |
| Max. Output Current: | 6A per channel, 15A total |
| Max. Output Power: | 180W total @ 12V, 360W total @ 24V |
| IP Rating: | IP20 |
| Operating Temp.: | -4~140℉ (-20~60℃) |

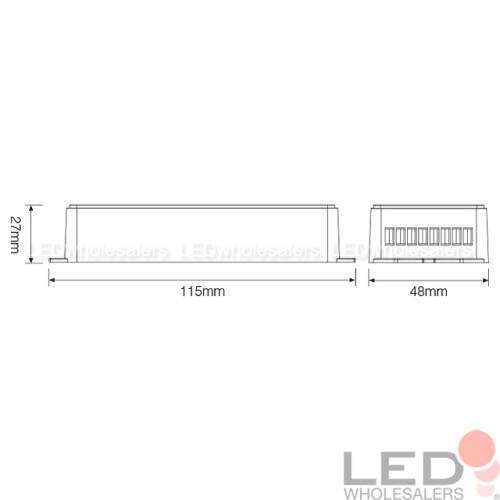

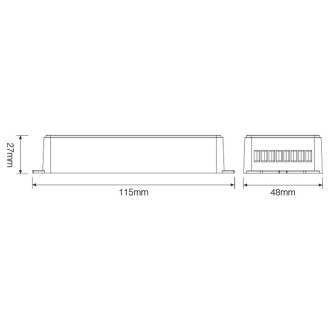

| Dimensions (LxWxH): | 115 x 48 x 27 mm |
| Compliance: | CE, RoHS |
| Warranty: | 1 year |
