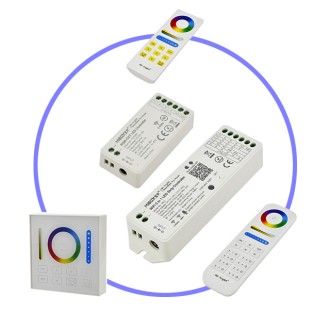

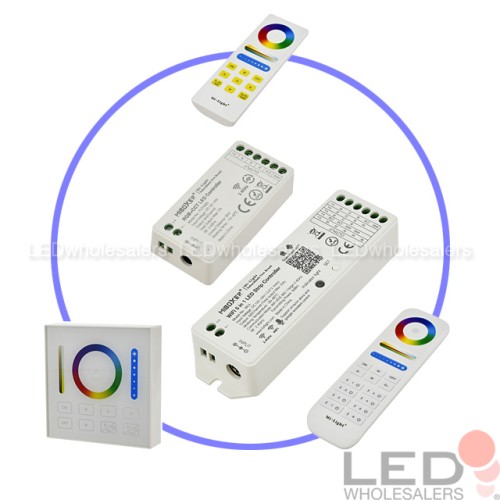

Features

• Components compatible with single color, CCT, RGB, RGBW, and RGB+CCT LED strips and modules
• Supports multi-receiver, multi-remote configurations
• RF technology eliminate the need for direct line of sight between receiver and wall-mount or handheld remote
• Multiple receivers may be programmed to be controlled by a single wall-mount and/or handheld remote
• Multiple receivers may be programmed to operate in sync, without the need to be physically linked together with wires

Description

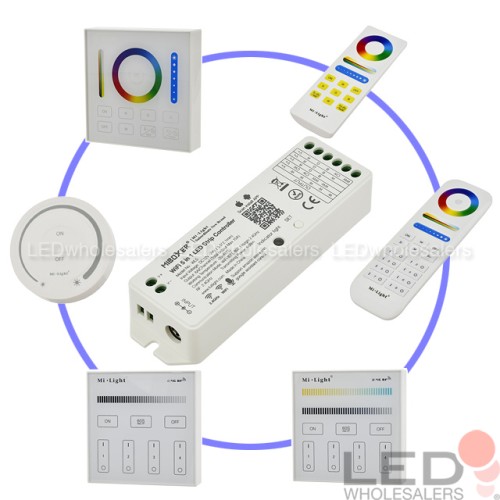

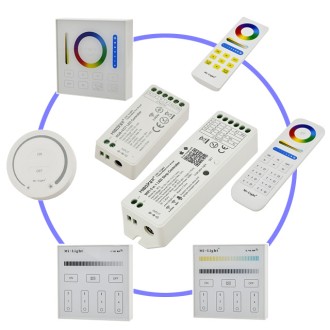

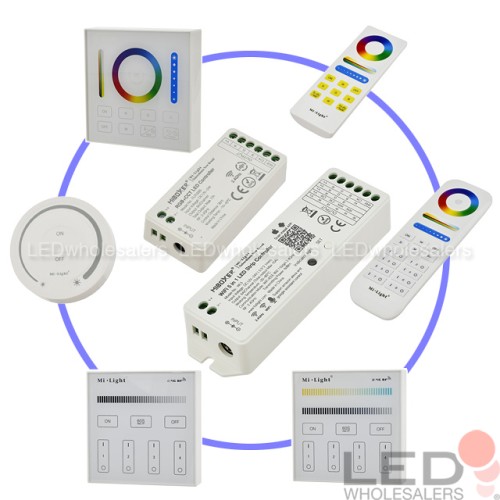

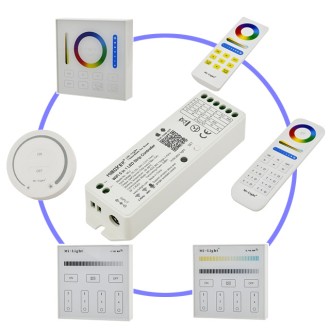

These components work together seamlessly, providing a flexible and scalable solution for single color, CCT, RGB, RGBW, and RGB+CCT LED strips and modules.

All components sold separately.

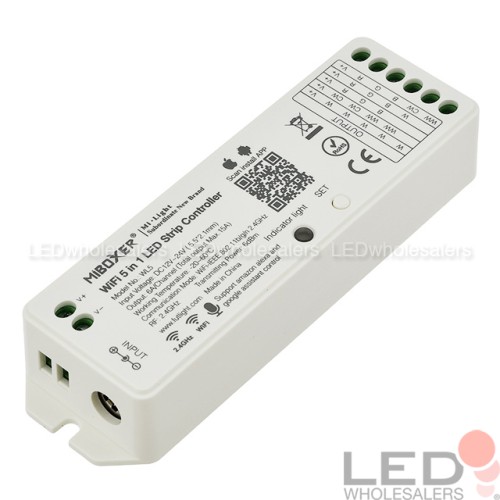

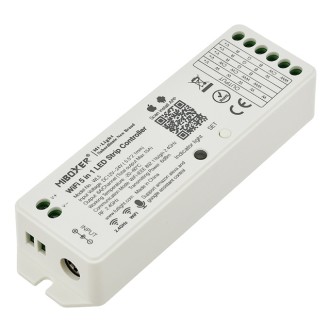

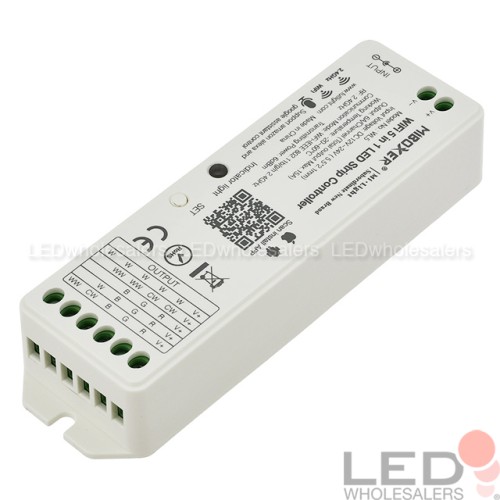

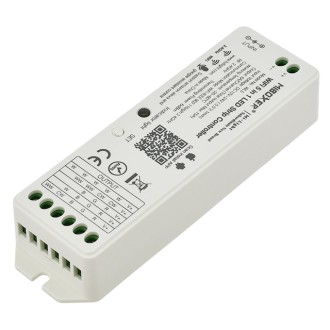

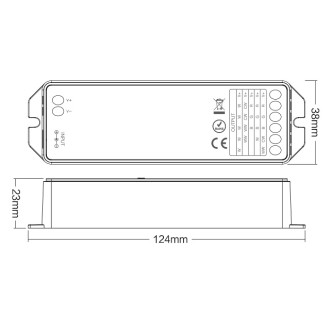

======   Wi-Fi Receiver/Controller (#33101)   ======

Features (Wi-Fi receiver/controller)

• Wide compatibility – supports single color, CCT, RGB, RGBW, and RGB+CCT LED strips/modules
• Flexible control – works via voice with Amazon Alexa and Google Assistant, via free app on compatible iOS and Android smart devices, and via RF wireless remotes
• Extended range – controllers automatically transmit signals from remote to other controllers within 30m, greatly extending remote control distance
• Flexible scalability – multiple units may be grouped together to form a single zone, all operated in sync
• Auto-synchronization – controllers in the same group/zone automatically sync up to one another, even when powered on at different times

Description (Wi-Fi receiver/controller)

This powerful and versatile 5-channel LED controller has voice control ability—simply speak commands (turn on/off, dim/brighten, set static colors) to Alexa or Google Assistant (hardware not included).

In addition, it allows the use of an iPad, iPhone or Android device to act as wireless remote through Wi-Fi (via a dedicated mobile app, which can be downloaded for free).  The app is easy to use, offers extra features with nearly infinite colors and combination.

The types of LED lights supported are single color, CCT, RGB, RGBW, and RGB+CCT LED strips and modules.

Specifications (Wi-Fi receiver/controller)

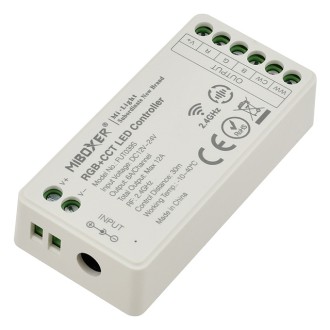

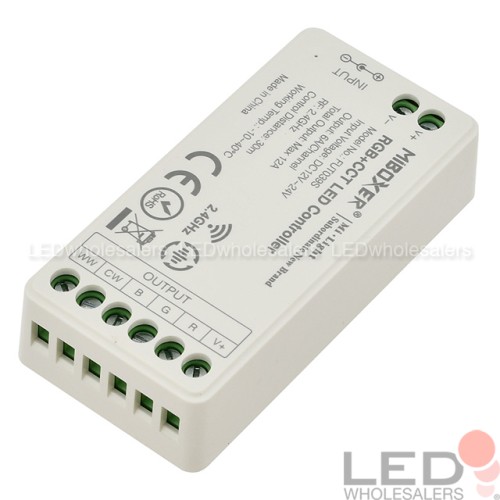

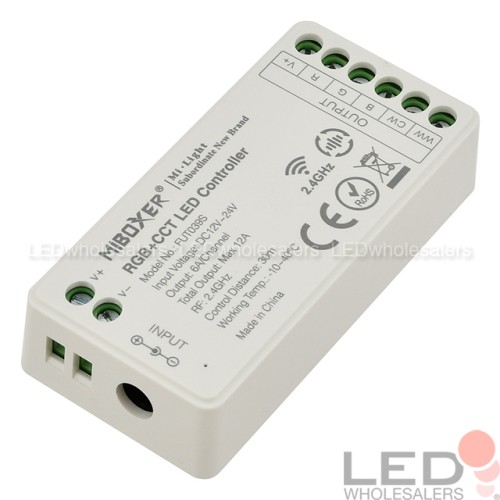

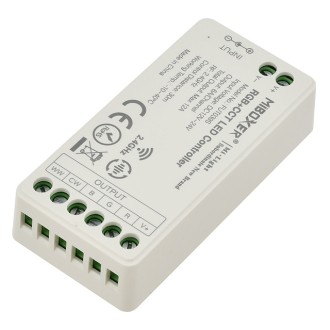

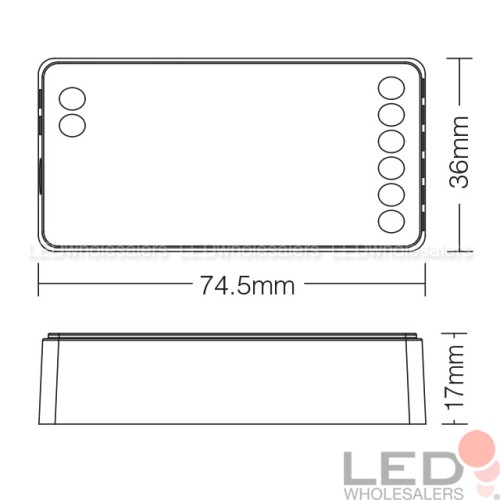

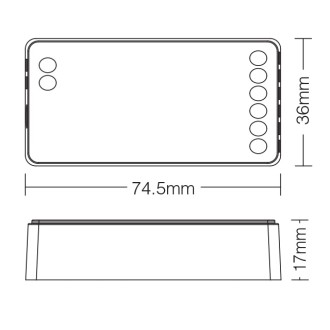

======   RF Receiver/Controller (#33109)   ======

Features (RF receiver/controller)

• Wide compatibility – supports single color, CCT, RGB, RGBW, and RGB+CCT LED strips/modules
• Flexible control – works with RF wireless remotes, and in conjunction with optional gateway, voice with Amazon Alexa and Google Assistant, via free app on compatible iOS and Android smart devices
• Extended range – controllers automatically transmit signals from remote to other controllers within 30m, greatly extending remote control distance
• Flexible scalability – multiple units may be grouped together to form a single zone, all operated in sync
• Auto-synchronization – controllers in the same group/zone automatically sync up to one another, even when powered on at different times

Description (RF receiver/controller)

This versatile 5-channel LED controller is compatible with a wide range of RF controllers.  When used with an optional gateway, it has voice control ability—simply speak commands (turn on/off, dim/brighten, set static colors) to Alexa or Google Assistant (hardware not included).

In addition, the optional gateway allows the use of an iPad, iPhone or Android device to act as wireless remote through WiFi (via a dedicated mobile app, which can be downloaded for free).  The app is easy to use, offers extra features with nearly infinite colors and combination.

The types of LED lights supported are single color, CCT, RGB, RGBW, and RGB+CCT LED strips and modules.

Note: Not all preset dynamic modes are available in all configurations.

Specifications (RF receiver/controller)

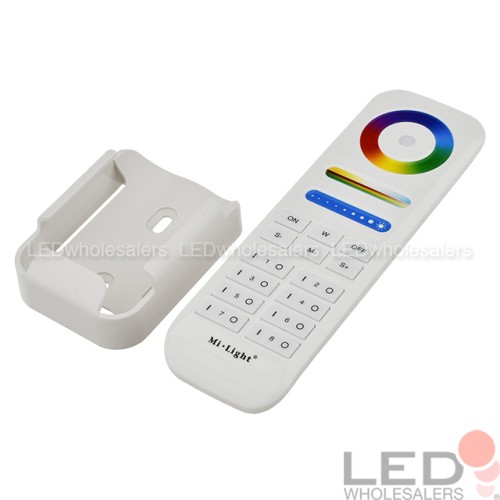

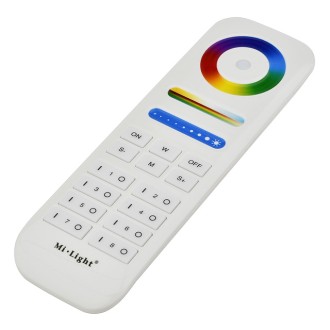

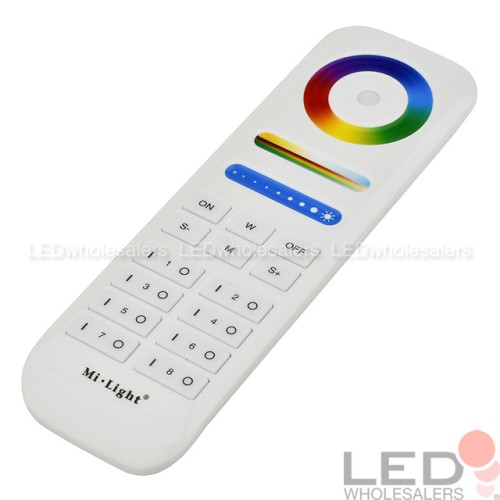

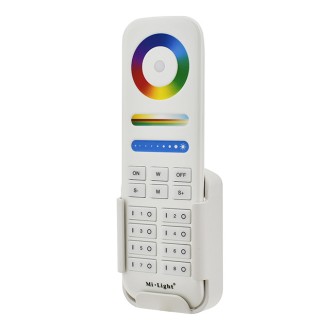

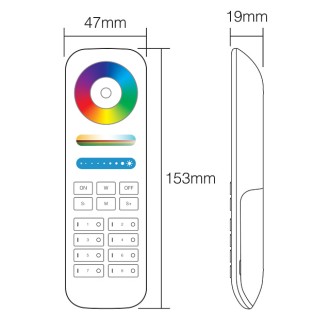

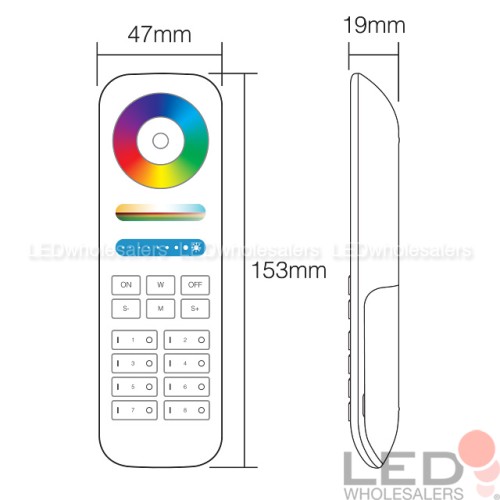

======   8-Zone RGB+CCT Handheld Remote (#33103)   ======

Features (8-zone RGB+CCT handheld remote)

• Control static colors, dimming, CCT, and color changing modes
• Touch-sensitive color wheel for intuitive color selection
• Dedicated touch bars for CCT/saturation and brightness adjustment
• Support for up to 8 separate zones, each zone may have multiple receivers
• Stylish and comfortable to hold

Description (8-zone RGB+CCT handheld remote)

This advanced wireless RF remote is a great companion for compatible controllers/receivers.  Among its many features are a touch-sensitive color wheel for selecting static colors and dedicated key for controlling the white color channel.  It can control up to 8 zones, eliminating the need for multiple remotes.

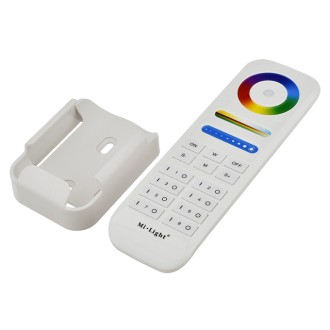

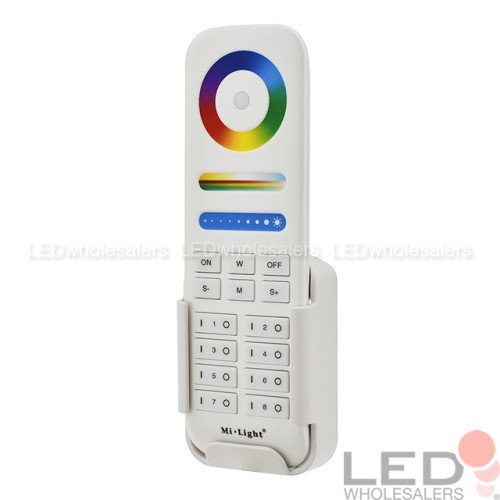

A wall-mount holder for wireless remote is included.

Programming Controller/Receiver (sold separately):

To pair/link:

• Determine zone number to be assigned.
• Disconnect power to controller/receiver in desired zone; after 10 seconds, restore power to controller/receiver.
• Within 3 seconds, short press ‘I’ key of desired zone 3 times in quick succession.
• Connected light on controller/receiver flashes 3 times slowly to indicate successful linking.
• Note: If linking failed, disconnect power to controller/receiver and repeat link process.

To unpair/unlink:

• Determine zone number of controller/receiver to be unlinked.
• Disconnect power to controller/receiver; after 10 seconds, restore power to controller/receiver.
• Within 3 seconds, short press ‘I’ key of desired zone 5 times in quick succession.
• Connected light on controller/receiver flashes 10 times quickly to indicate successful unlinking.
• Note: If unlinking failed, disconnect power to controller/receiver and repeat unlink process.

Specifications (8-zone RGB+CCT handheld remote)

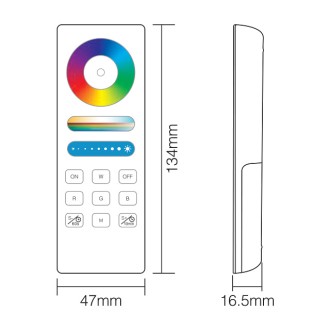

======   1-Zone RGB+CCT Handheld Remote (#33102)   ======

Features (1-zone RGB+CCT handheld remote)

• Control static colors, dimming, CCT, and color changing modes
• Touch-sensitive color wheel for intuitive color selection
• Dedicated touch bars for CCT/saturation and brightness adjustment
• Support for a single zone, which may have multiple receivers
• Handheld, with timer keys for automatic shut off

Description (1-zone RGB+CCT handheld remote)

This advanced wireless RF remote is a great companion for compatible controllers/receivers.  Among its many features are a touch-sensitive color wheel for selecting static colors and dedicated key for controlling the white color channel.  It controls a single zone, which may be made up of one or more controllers/receivers.

A wall-mount holder for wireless remote is included.

Programming Controller/Receiver (sold separately):

To pair/link:

• Disconnect power to controller/receiver in desired zone; after 10 seconds, restore power to controller/receiver.
• Within 3 seconds, short press ‘ON’ key 3 times in quick succession.
• Connected light on controller/receiver flashes 3 times slowly to indicate successful linking.
• Note: If linking failed, disconnect power to controller/receiver and repeat link process.

To unpair/unlink:

• Disconnect power to controller/receiver; after 10 seconds, restore power to controller/receiver.
• Within 3 seconds, short press ‘ON’ key 5 times in quick succession.
• Connected light on controller/receiver flashes 10 times quickly to indicate successful unlinking.
• Note: If unlinking failed, disconnect power to controller/receiver and repeat unlink process.

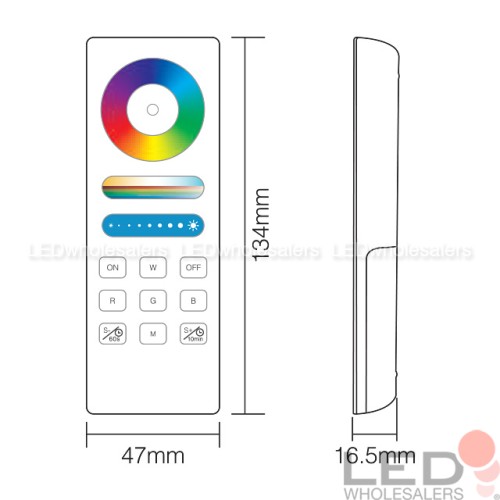

Specifications (1-zone RGB+CCT handheld remote)

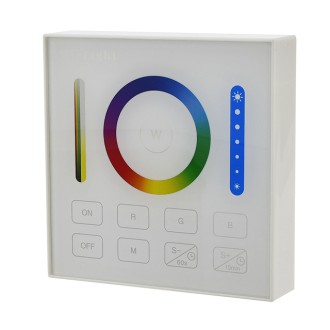

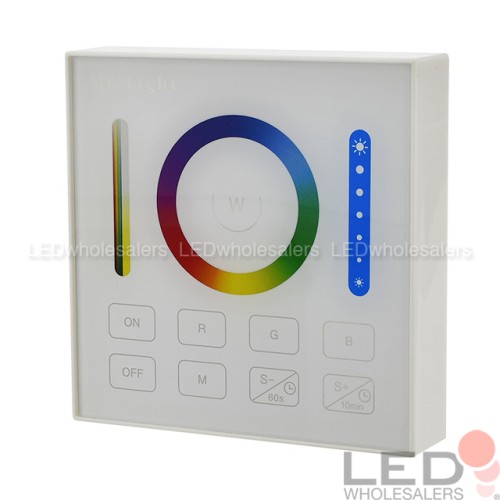

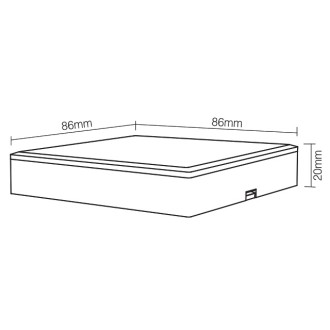

======   1-Zone RGB+CCT Wall-Mount Remote (#33104)   ======

Features (1-zone RGB+CCT wall-mount remote)

• Controls static colors, dimming, CCT, and color changing modes
• Touch-sensitive color wheel for intuitive color selection
• Dedicated touch bars for CCT/saturation and brightness adjustment
• Support for a single zone, which may have multiple receivers
• Wall-mount, with timer keys for automatic shut off

Description (1-zone RGB+CCT wall-mount remote)

This advanced wireless RF remote is a great companion for compatible controllers/receivers.  Among its many features are a touch-sensitive color wheel for selecting static colors and dedicated key for controlling the white color channel.  It controls a single zone, which may be made up of one or more controllers/receivers.

Programming Controller/Receiver (sold separately):

To pair/link:

• Disconnect power to controller/receiver in desired zone; after 10 seconds, restore power to controller/receiver.
• Within 3 seconds, short press ‘ON’ key 3 times in quick succession.
• Connected light on controller/receiver flashes 3 times slowly to indicate successful linking.
• Note: If linking failed, disconnect power to controller/receiver and repeat link process.

To unpair/unlink:

• Disconnect power to controller/receiver; after 10 seconds, restore power to controller/receiver.
• Within 3 seconds, short press ‘ON’ key 5 times in quick succession.
• Connected light on controller/receiver flashes 10 times quickly to indicate successful unlinking.
• Note: If unlinking failed, disconnect power to controller/receiver and repeat unlink process.

Specifications (1-zone RGB+CCT wall-mount remote)
