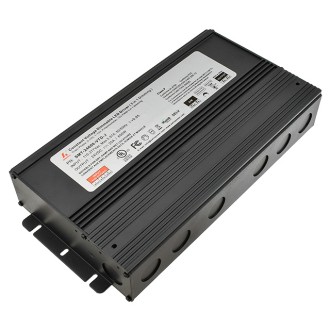

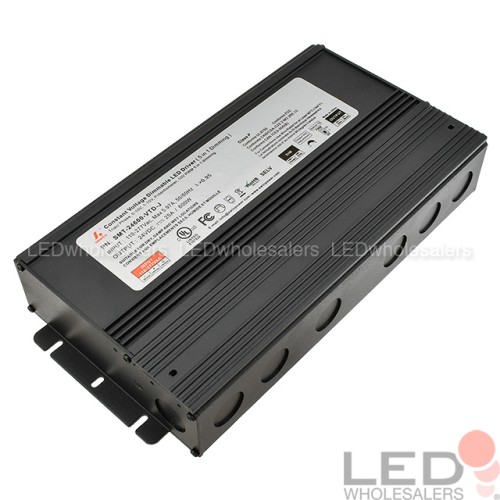

PS04 24V 600-Watt Constant Voltage 5-in-1 TRIAC & 0-10V Dimmable PWM Output Electronic LED Driver with Integrated J-Box
- Product Code: 3290-24VR2
- Availability: 50
-
$359.99
- 20 or more $341.99
- OR -
Features
- Dimmable with most MLV / forward phase / leading edge (TRIAC) and ELV / reverse phase / trailing edge dimmer switches
- Supports 0-10V, 1-10V, potentiometer, and 0-10V PWM dimming control signals
- 24V DC PWM constant voltage output for smooth, flicker-free light; 600W max.

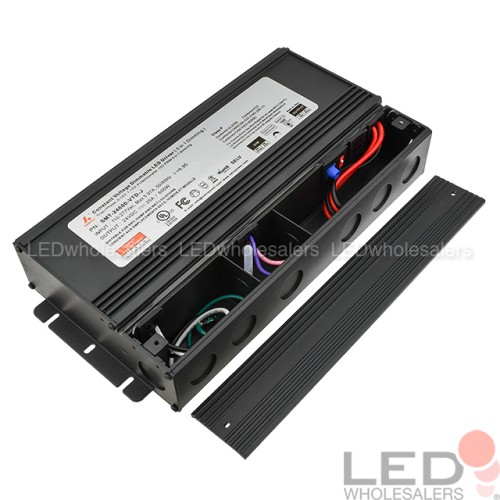

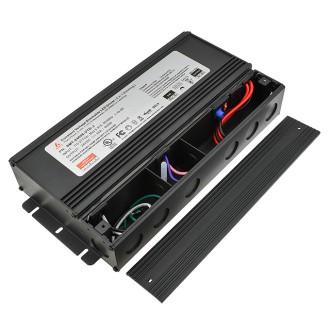

- Metal housing with built-in wiring compartments for durability and easy installation
- Built-in knob for fine-tuning of output voltage
- Suitable for use in dry and wet locations
Description
With its widely supported dimming methods and integrated J-box, this 24V 600W LED driver is great for many LED lighting installations.
Note
- For smooth dimming, a minimum load of 10% is required.
- Triac / phase cut dimmers should be rated at least 1.5x the power rating of these drivers.
Specifications
| Output Voltage: | 24 VDC |
| Output Current, Full Load: | 25 A |
| Output Power (max.): | 600 W |
| Input Voltage: | 110~277 VAC, 50/60 Hz |
| Input Current (Max.): | 5.97 A / 110 VAC |
| Efficiency: | >90% |
| Working Temp.: | -40～+60 ℃ |
| Working Humidity: | 20～90% RH, non-condensing |
| Protection: | Short circuit, overload, over temperature |
| Input Wires (White/Black/Green): | 18 AWG |
| Output Wires (Red/Black): | 14 AWG |
| Dimming Wires (Purple/Pink): | 18 AWG |
| Dimensions (LxWxH): | 11.0” x 5.5” x 2.0” |
| Compliance: | UL, RoHS |
| Warranty: | 3 year |
