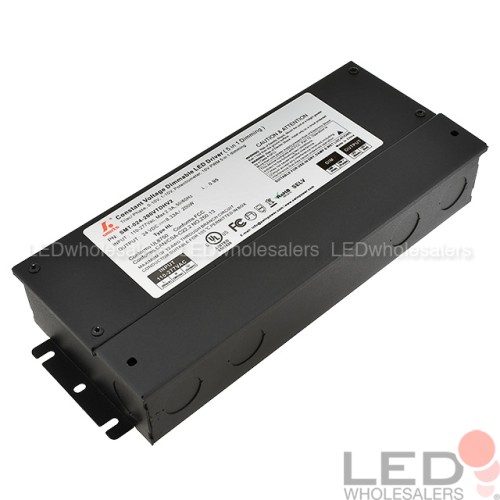

PS04 24V 200-Watt Constant Voltage 5-in-1 TRIAC & 0-10V Dimmable PWM Output Electronic LED Driver with Integrated J-Box
- Product Code: 3256-24V
- Availability: 80
-
$159.99
- 20 or more $151.99
- OR -
Features
- Dimmable with most MLV / forward phase / leading edge (TRIAC) and ELV / reverse phase / trailing edge dimmer switches
- Supports 0-10V, 1-10V, potentiometer, and 0-10V PWM dimming control signals
- 24V DC PWM constant voltage output for smooth, flicker-free light; 200W max.

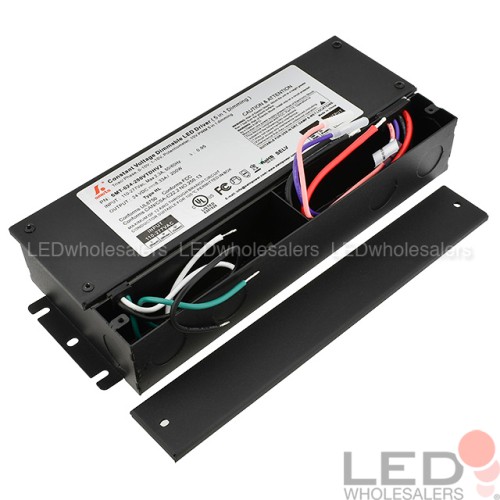

- Metal housing with built-in wiring compartments for durability and easy installation
- UL-listed and NEMA 4X rated; suitable for use in dry and wet locations
Description
With its widely supported dimming methods and integrated J-box, this 24V 200W LED driver is great for many LED lighting installations.
Specifications
| Output Voltage: | 24 VDC |
| Output Current, Full Load: | 8.33 A |
| Output Power (max.): | 200 W |
| Input Voltage: | 110~277 VAC, 50/60 Hz |
| Input Current (Max.): | 2.3 A / 110 VAC |
| Efficiency: | 88% |
| Working Temp.: | -40～+60 ℃ |
| Working Humidity: | 20～90% RH, non-condensing |
| Protection: | Over temp., short circuit, over load |
| Input Wires (White/Black/Green): | 18 AWG |
| Output Wires (Red/Black): | 14 AWG |
| Dimming Wires (Purple/Pink): | 18 AWG |

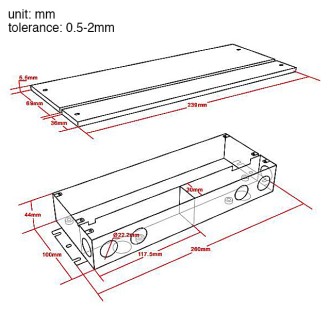

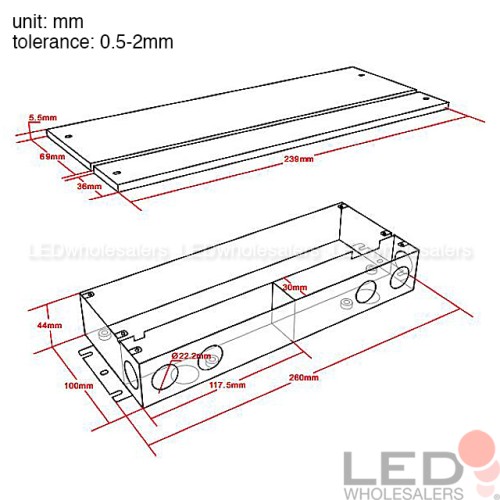

| Dimensions (LxWxH): | 10.2” x 4.1” x 1.8” |
| Compliance: | UL, RoHS |
| Warranty: | 1 year |
